DX-1000

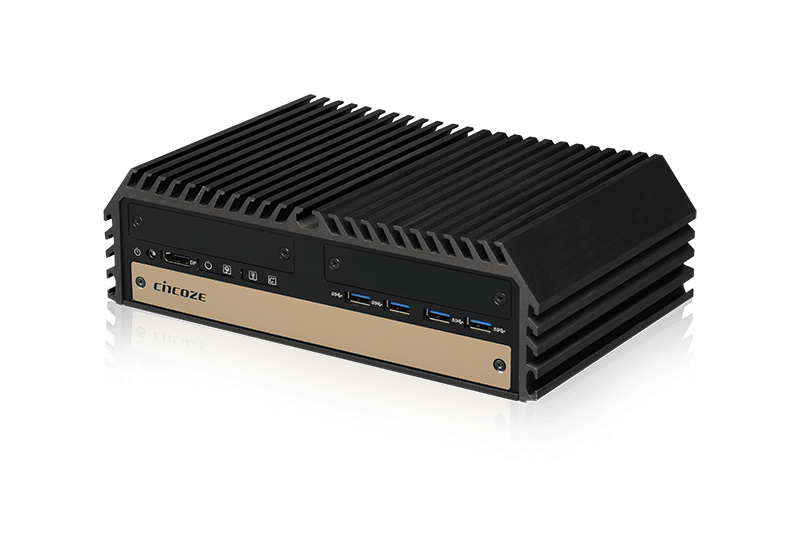

DX-1000 View Larger Image

7/6th Generation Intel® Xeon® and Core™ Processors, Extreme Performance, Compact and Modular Rugged Workstation

Download PDF

    Get a Quote

    Customer Details








    Specifications

    Accessories

    CPU Heatsink Thermal Pad
    Utility DVD Driver
    Screw Pack
    Wall Mounting Kit
    Power Terminal Block Connector
    Remote Power On/Off Terminal Block Connector
    Fan Terminal Block Connector
    DVI-I to VGA Adaptor
    (Optional) CMI I/O Expansion Module
    (Optional) CFM Function Expansion Module

    Certifications

    EMC: CE, FCC Class A
    Safety: LVD (EN60950-1)
    Fire Protection: EN45545-2
    Railway: EN50155, EN50121-3-2
    In-Vehicle: E-Mark (E13, No.10R-0514546)

    Dimensions

    242 mm (W) x 174mm (D) x 77 mm (H)

    Expansion

    2 x CFM Interface for Cincoze CFM Modules:
    - Supports CFM IGN Module, adn CFM PoE Module

    3 x CMI Interface for Cincoze CMI Modules:
    - 4x RJ45 GbE LAN Module, 4x M12 GbE LAN Module (via 2x High Speed CMI Interfaces)
    - 2x COM Module, 16x Optical Isolated DIO Module (via 1x Low Speed CMI Interface)

    4 x Full-size Mini-PCIe Sockets
    1 x SIM Socket

    Front I/O

    4 x USB 3.0
    1 x DisplayPort (DP2)
    2 x Universal I/O Expansion (via CMI module)

    Graphics

    Integrated Intel® HD Graphics supports triple independent display (1x DVI-I, 2x DisplayPort)

    Input Voltage

    Power Input Voltage 9~48VDC
    Support AT/ATX Power Type

    LAN Controller

    2x GbE LAN (Support WoL, Teaming, Jumbo Frame, IEEE 1588v2 and PXE), RJ45
    - GbE1: Intel® I219-LM
    - GbE2: Intel® I210-AT

    Memory Capacity

    up to 32GB

    Memory Slots

    2 x SODIMM

    Memory Speed

    2133/2400 MHz

    Memory Type

    DDR4

    Mounting Options

    Wall mount kit

    Operating Temp

    7th Generation Intel® CPU (Kaby Lake-S)
    - 35W TDP CPU: -40°C to 50°C
    - 51W~65W TDP CPU: -40°C to 45°C
    - 73W TDP CPU: -40°C to 40°C

    6th Generation Intel® CPU (Skylake-S)
    - 35W TDP CPU: -40°C to 70°C
    - 51W~65W TDP CPU: -40°C to 55°C
    - 80W TDP CPU: -40°C to 40°C
    (With Extended Temperature Peripherals; Ambient with Air Flow; According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)

    Power Interface

    3-pin Terminal Block
    Power Adapter AC/DC 24V/5A 120W or 24V/9.2A 220W (Optional)

    Processor

    7th Generation Intel® CPU (Kaby Lake-S):
    - Intel® Core i3-7100T: 3M Cache, 3.4 GHz, TDP 35W
    - Intel® Core i5-7500T: 6M Cache, up to 3.3 GHz, TDP 35W- Intel® Core i7-7700T: 8M Cache, up to 3.8 GHz, TDP 35W
    - Intel® Core i3-7300: 4M Cache, 4.0 GHz, TDP 51W
    - Intel® Core i5-7500: 6M Cache, up to 3.8 GHz, TDP 65W
    - Intel® Core i7-7700: 8M Cache, up to 4.2 GHz, TDP 65W
    - Intel® Xeon E3-1275 v6: 8M Cache, up to 4.2 GHz, TDP 73W

    6th Generation Intel® CPU (Skylake-S)
    - Intel® Core i3-6100TE: 4M Cache, 2.7 GHz, TDP 35W
    - Intel® Core i5-6500TE: 6M Cache, up to 3.3 GHz, TDP 35W
    - Intel® Core i7-6700TE: 8M Cache, up to 3.4 GHz, TDP 35W
    - Intel® Xeon E3-1268L v5: 8M Cache, up to 3.4 GHz, TDP 35W
    - Intel® Core i3-6100: 3M Cache, 3.7 GHz, TDP 51W
    - Intel® Core i5-6500: 6M Cache, up to 3.6 GHz, TDP 65W
    - Intel® Core i7-6700: 8M Cache, up to 4.0 GHz, TDP 65W
    - Intel® Xeon E3-1225 v5: 8M Cache, up to 3.7 GHz, TDP 80W
    - Intel® Xeon E3-1275 v5: 8M Cache, up to 4.0 GHz, TDP 80W

    Processor Generation

    Kaby Lake / Skylake

    Rear I/O

    4 x USB 3.0
    4 x RS-232/422/485 with Auto Flow Control (Support 5V/12V), DB9
    2 x RJ-45 LAN
    1 x DVI-I
    1 x DisplayPort (DP1)
    1 x DC-IN 3-pin Terminal Block
    1 x External Fan Connector
    1 x Remote Power On/Off

    SKU

    DX-1000

    Storage

    2x SATA III (6Gbps) for 2.5” HDD/SSD Hot Swappable Drive Bays
    4x mSATA (Shared by Mini-PCIe Socket) (Gen2)
    Supports S/W RAID 0, 1, 5 & 10
